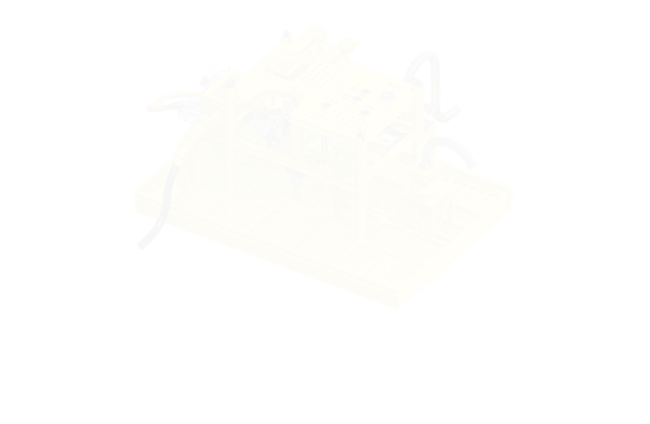

PIPELINE END MANIFOLD (PLEM)
Subsea manifold is a structure containing a system of valves, pipe headers and branched pipework that are designed to commingle and distribute produced fluids from multiple wells or to distribute injection fluids into the wells.
FEATURES
- • Provides an interface between the production pipelines, flowlines and subsea wells.
- • Collects and distributes produced fluids from subsea wells (cluster or satellite).
- • Distributes injection fluids, gas, chemicals and control fluids to subsea trees.
- • Distributes electrical and hydraulic power.
- • Custom anchor foundations depending on hydrodynamic analysis.
- • Accommodates various flowline, header sizes and sensors.
- • Provision of looped pipe headers to allow round trip pigging.
- • Provision of field proven tie-in connection systems (Horizontal or Vertical)
