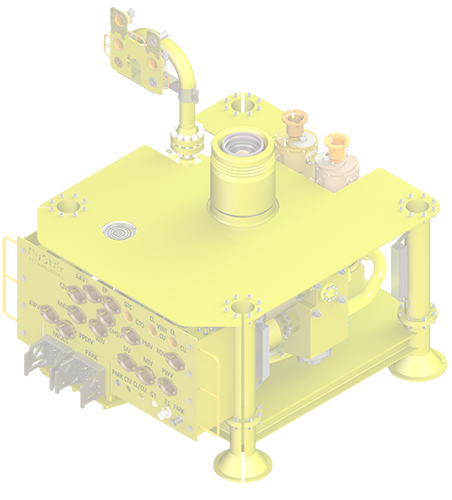

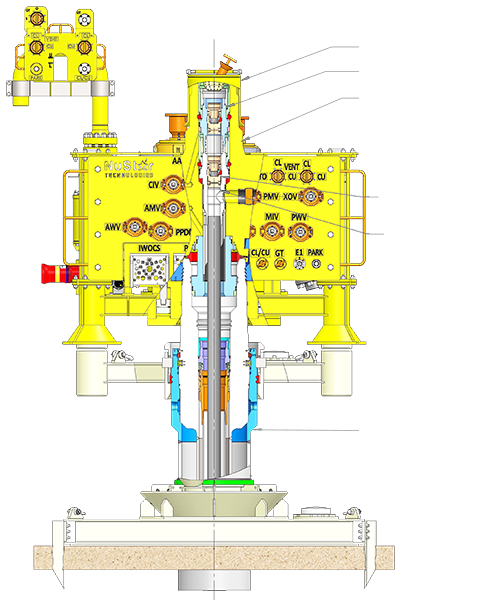

SUBSEA HORIZONTAL TREE

FEATURES

• • 5,000 PSI to 15,000 PSI
• • API Requirements ; 17D / 6A, PSL 3G
• • Guidance : Guidepost or Guideline less (funnel down)
• • Controls : Tree mounted SCM
• • Choke : Production / Injection Choke on Tree
• • Penetrations : Hydraulic and electrical for DHPT
